Description


Control Electronics model ERS-560 Ultrasonic Level Monitor is an accurate, non-contacting liquid level measuring system.  The unit monitors liquid level in almost any standard tank configuration using sophisticated ultrasonic ECHO ranging techniques. The PVC sensor is supported above the liquid level providing accurate, instantaneous levels along with calculated stored gallons, data logging, two 4-420 mA. analog outputs and 5 programmable control relays with independent ON/OFF settings for differential control.


The system features easy programming and set up. The sensor operates with a low pulsed voltage making it environmentally non-hazoardous. Control pumps with lead/lag alternate function.

The US70TC Sensor uses an inexpensive twisted pair shielded cable, 700 feet maximum.  The sensor uses a lower pulse voltage than most other manufacturers.  The sensor is easily mounted using PVC components and due to the low operating voltage,  is considered non-hazardous, eliminating potential arcing of a faulty cable or connection.

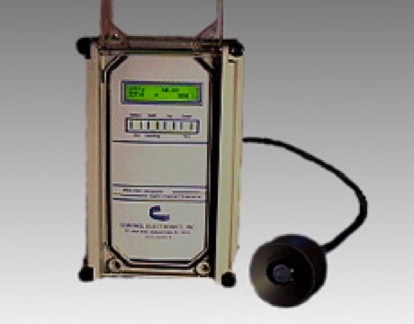

ERS-560 / 560DX Ultrasonic Level Monitor

The US70TC Sensor with built-in temperature probe, uses an inexpensive twisted pair shielded cable. No complicated multi-pair cable or expensive coaxial cable.

APPLICATIONS

Monitoring Levels in:


 - Sewage Treatment Plants


 - Bar Screen Control


 - Industrial Storage Tanks


 - Wet Well Lift Station Control


 - Railroad Tank Cars


 - Positioning Control


 - Lagoon and Basin Level Control

FEATURES

Standard


 - Quick, Easy, Menu Driven Programming


 - Five Control Relays with ON/OFF settings for

   Alarms, Pumps etc.


 - 200 Day Data Logging of end of day  liquid level

    and total gallons of product


 - Waterproof NEMA 4X, IP65 Rated Fiberglass

   Enclosure With Clear Hinged cover


 - Two Independent 4-20 mA. outputs,

    programmable


 - Alternate LEAD/LAG function

TANK CONFIGURATIONS

built-in Equations


 - Cylindrical  10-999 inch diameter


 - Rectangular  1-999 inches per side


 - Square  1-999 inches per side


 - Horizontal


 - Sphere


 - None


Dimensions used to calculate approximate stored gallons

For Programming Meter, RESETing Meter and Trouble Shooting go to SUPPORT.

Electronics


Power:              120/220 VAC, ±15%, 50/60 Hz @ 15 watts max.

Temperature:    20°F to 120°F

Display:             2 x 20 character, alphanumeric LCD with backlight

Totalizer:           8 digit accumulative with programmable multiplier;

                         x1, x10, x100, x1000

Outputs*:          Two independent 4-20 mA isolated into 1000 ohm load

                         each, ±1.0% of full scale.

                         RS-232 terminal ( USB with adapter ), 5  control

                         relays with ON/OFF settings, LEAD/LAG function, all

                         programmable. Relay contacts SPDT 5A/250 VAC

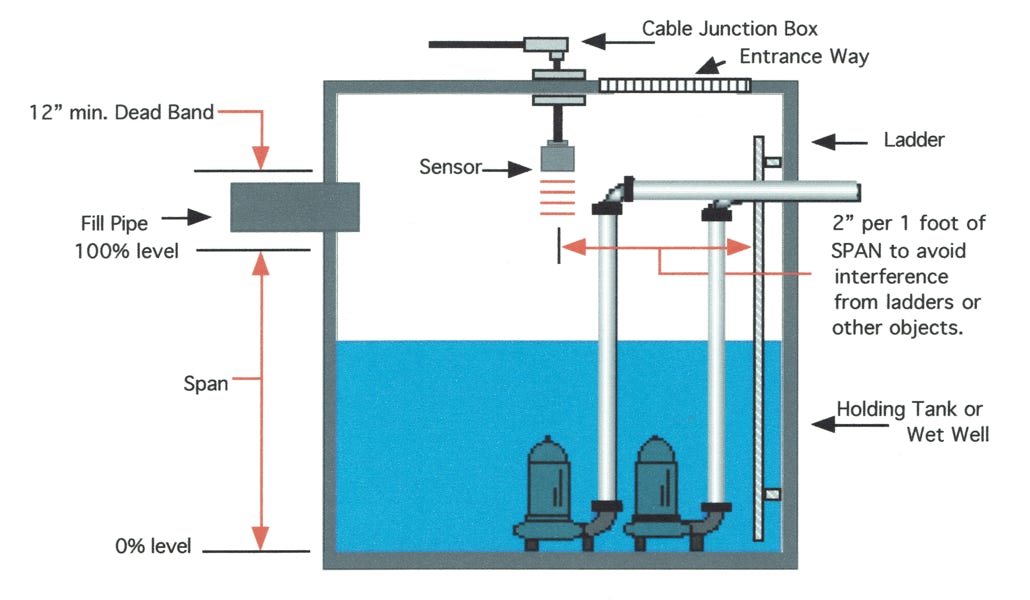

Span Range:    0-10.0” to 0-220.00”

Dead Band:      12.0” to 36.0” adjustable blanking

Resolution:       0.01”, 0.01 GPM ( LCD Display )

Accuracy**:      ±0.7% of range.  Calculated error ±0.04%

Memory:           Flash and non-volatile RAM ( 3 V battery backup )

Equations:        Cylindrical, Rectangular, Square, Sphere, Horizontal, None

Data Log*:       200 day, 24 hour flow summary: min, max Levels, time

                        stamped, end of day level and gallons. ( down load or view

                        on LCD display )

                        Sampled level in inches with programmable log rate of

                        00-99 minutes ( 1 minute increments ) time  stamped

                        EVENT list time stamped


*    The ERS-560DX unit has no relay / RS-232 outputs or data logging

**   Field conditions, such as turbulence, poor installation etc., may

      affect the apparent accuracy.

ERS-560/560DX Level Monitor Specifications          8/20

Sensor w/Temp Probe ( US70TC Sensor )


Material:             PVC Housing, Epoxy

Beam / Freq.:     5° Conical, 40 Khz pulsed

Temperature:    -10°F to 120°F operating

Cable:                30 foot twisted pair, Up to 600 ft. spliced in-field.  Belden # 8451 or equal.

Dimensions:       3.0” dia. x 4.2” len

Mounting:           3/4” male ( 3/4” female with supplied union joint )

Rating:               Sensor is considered explosion proof, corrosion resistant, immersible


Enclosure


Material:            Fiberglass with clear hinged Polycarbonate cover, stainless steel hinges

                          and  mounting hardware

Rating:              NEMA 4X, IP65, Dust-Tight, Water-Tight, Corrosion Resistant, CSA / UL

                          listed

Dimensions:      7.2” x 11.8” x 6.8”

Mounting:          4.92” x 12.3”


Options


PVC Sensor Mounting Kit;  Additional Sensor cable; Additional Manuals; 120 VAC, 6 foot power cord installed


Warranty


The ERS-560 and 560DX units are pretested and inspected before shipping.  Warranty is against defects in parts and workmanship for a period of one (1) year from ship date.


Specifications and Design are subject to change without notice.

These specifications supersede all other published specifications.

Made in USA
